VEKTOR
About the VECTOR

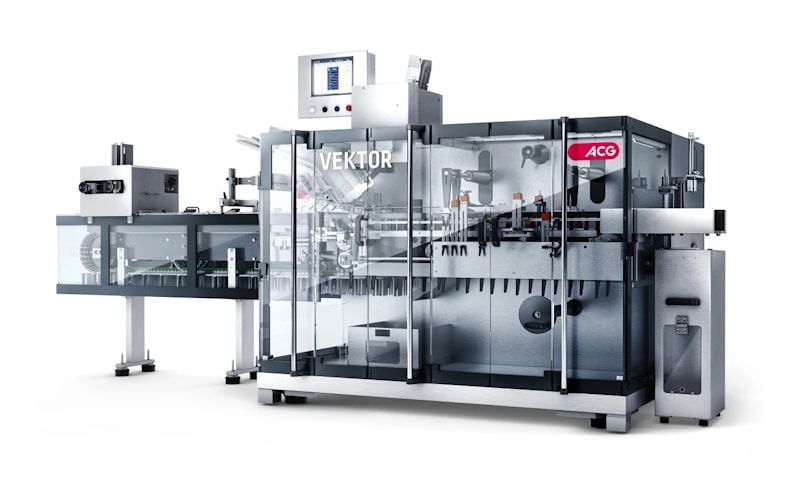

VEKTOR is a compact, intermittent-motion, horizontal cartoning machine that integrates easily with upstream blister packaging machines. Built on a robust framework of balcony design, it’s cGMP compliant, and ideal for blister applications with multiple stacks.
Applications
Multiple stacks of blister packs
Features | Benefits | |
|---|---|---|
| Compact footprint |  | Saves production floorspace |
| cGMP-compliant balcony-type construction built on a servo-driven platform | | Easy access and cleaning Smooth and silent operation |
| Single format part | | Quick and easy changeover Cost-effective |
| Built-in ‘No product-No leaflet-No carton’ system | | Reliable, error-free output |
| Available in different pitch configurations | | Package cartons of many different sizes |
| Capable of integrating leaflet and booklet transfer units | | Allows patient information inserts in different formats |
Technical specification | |||
VEKTOR 5P | VEKTOR 8P | ||
| Maximum output | 80 cartons/min | 50 cartons/min | |
| Carton width | Min | 20 mm | 50 mm |
| Max | 95 mm | 130 mm | |
| Carton height | Min | 16 mm | 16 mm |
| Max | 90 mm | 100 mm | |
| Carton length | Min | 65 mm | 65 mm |
| Max | 200 mm | 220 mm | |
| Carton type | Reverse tuck-in, glued type, parallel tuck-in, front tuck-in/rear gluing, gluing after tuck-in | Reverse tuck-in | |
