L Sealer – Auto
Automatic L Bar Sealer
– Apply Mitsubishi PLC controller for stable operation performance.
– Apply Omron timer for control sealing & cutting time.
– Individual pin roller, enable to adjust pin position & amounts according to request.
– Adjustable film filling tension.
– Product entry height and width are adjustable directly without hand tool.
– Panasonic sensors for product entry reading.
– Cutting blade made by 1 piece with long time operation durability.
– Temp. controller with PID function and driven by SSR for stable heating performance.
– Auto abnormal warning on sealing & cutting device.
– Infeed conveyor apply with roller enhance smooth operation.
– Rubber roller for tight film holding with timing belt pulling.
– Film collection device can be easily install / dismantle without hand tool.
– Customized machine with product delivery, stacking, and sealing to cutting is available upon request.
– CE model available
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.
Optional Device/Function:
Closing conveyor (for small product), anti-cut protection, 3 in 1 blade (for PE film), adjustable sealing jaw height, adjustable sealing line position, S/S machine frame…etc.,

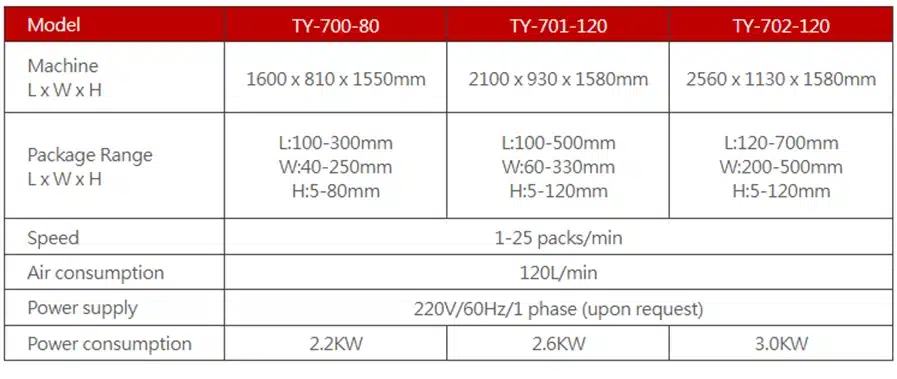

Specifications:
* Other packaging size available upon request.
* the speed will be different from product size, film thickness & operator.
* the package range might be different according to product size & package requirement.
Applicable packaging product:
Cosmetics, shampoo, conditioner, book, magazine, notebook, toys, tape, kitchenware, tooth paste, bio-technology products, tray, box, chemicals, bottle, can, soda, gift box, electronics, grocery, vegetable, paper roll, tissue, wire, metal parts, container, tin, canned milk, jar…etc.
TY-703-150 (non-servo type) Machine Feature:
– Sealing jaw opening height adjustable.
– Packaging speed adjustable.
– Scrap film auto collection by individual motor with tension control.
– Special design closing product filling mode for highly efficient package.
– Apply Mitsubishi PLC controller for stable operation performance.
– Apply Omron timer for control sealing & cutting time.
– Individual pin roller, adjustable pin position & amount.
– Adjustable film feeding tension.
– Panasonic sensors to control product entry position.
– One piece made cutting blade with long time operation durability.
– Temp. controller with PID function and driven by SSR for stable heating performance.
– Auto abnormal warning on sealing & cutting set.
– Infeed conveyor apply with roller for smooth operation.
– Directly adjustment on product entry width without hand tool.
– Rubber roller for tight film holding and pulling by timing belt.
– CE model available.
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.

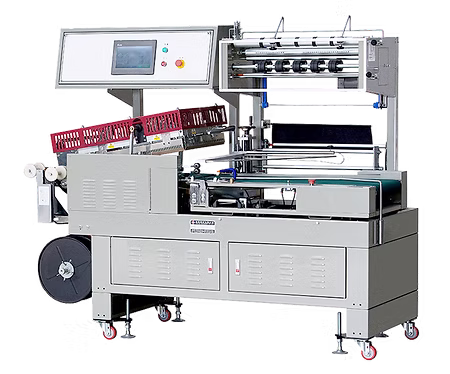

TY-703-150-SV, Servo Type with additional features:
– Servo Motor control sealing & cutting for highly efficient packaging performance.
– Convenient package works with no air required.
– Touch penal for user friendly operation.
– Operation speed & Sealing jaw opening height are setting through panel directly.
– Multiple memory programs for record/read different data.
– Auto warning with quick trouble shooting display.
Optional Device:
Closing belt (for small product), adjustable sealing line position, stainless steel frame, safety protection guard…etc.,

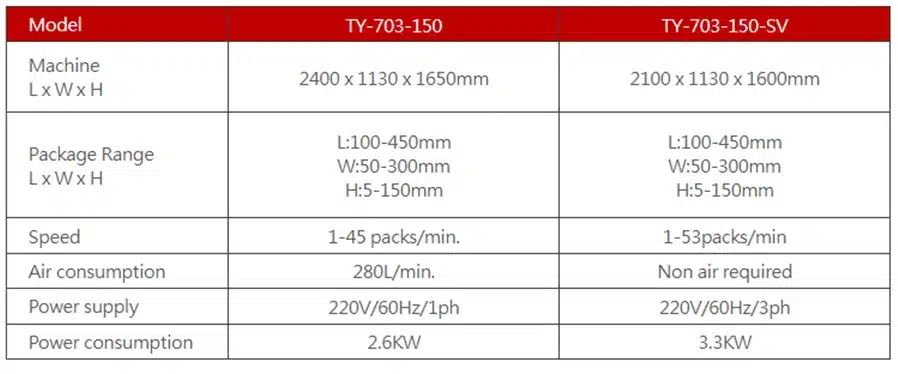

Specifications:
* Other package sizes & power supply available upon request.
* Package speed will be different from product size, film, and operator.
* The package range might be different according to product size & package requirement.
Applicable products:
Pizza box, container, tray, notebooks, booklets, magazine, stationery, food, grocery, toy, tape, canned milk, jar, tin, chemicals, bottle, can soda, gift box, electronics, paper roll, tissue, wire, disposable tableware, plastic product, tooth paste, cosmetics, shampoo, conditioner…etc.
Machine features:
– Suitable for product height 120-300mm.
– Adjustable sealing line position.
– Individual motor control product entry height in a sec.
– Auto Film collection with sensor controlled.
– Stable & efficient operation performance by Mitsubishi PLC controller
– Apply Omron timer for good control on sealing & cutting time.
– Film feeding tension is adjustable.
– Individual pin roller, pin position & amount adjustable according to request.
– Panasonic sensor for product entry reading.
– Cutting blade made by 1 pc with long time operation durability.
– Temp. controller with PID function and driven by SSR for stable heating performance.
– Auto abnormal warning on sealing & cutting set.
– Infeed conveyor apply roller for smooth operation.
– Quick adjustment on product entry width.
– Rubber roller for tight film holding with timing belt pulling.
– Customized machine with total packaging solution is available upon request.
– CE model available
- Please refer shrink tunnel according to product size for shrinking application.
- 5-6kg/cm2 filter air is self-prepared by buyer.
Optional device/function:
Anti-cut function, 3 in 1 blade (for PE film), Stainless steel frame…etc.

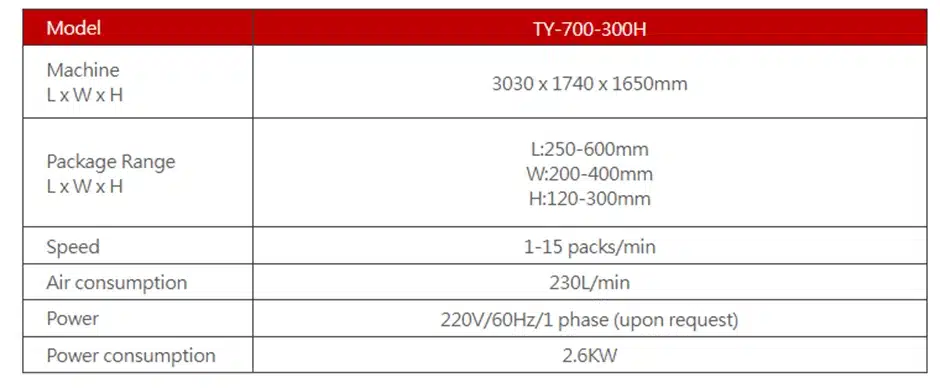

Specifications:
* Other packaging size available upon request.
* the speed will be different from product size, film thickness, & operator.
* the package range might be different according to product size & package requirement.
Applicable packaging product:
Box, container, shampoo, conditioner, book, magazine, notebook, toys, t kitchenware, bio-technology products, tray, chemicals, bottle, can, soda, gift box, electronics, grocery, paper roll, tissue, wire, metal parts…etc.
