Track and Trace Machines

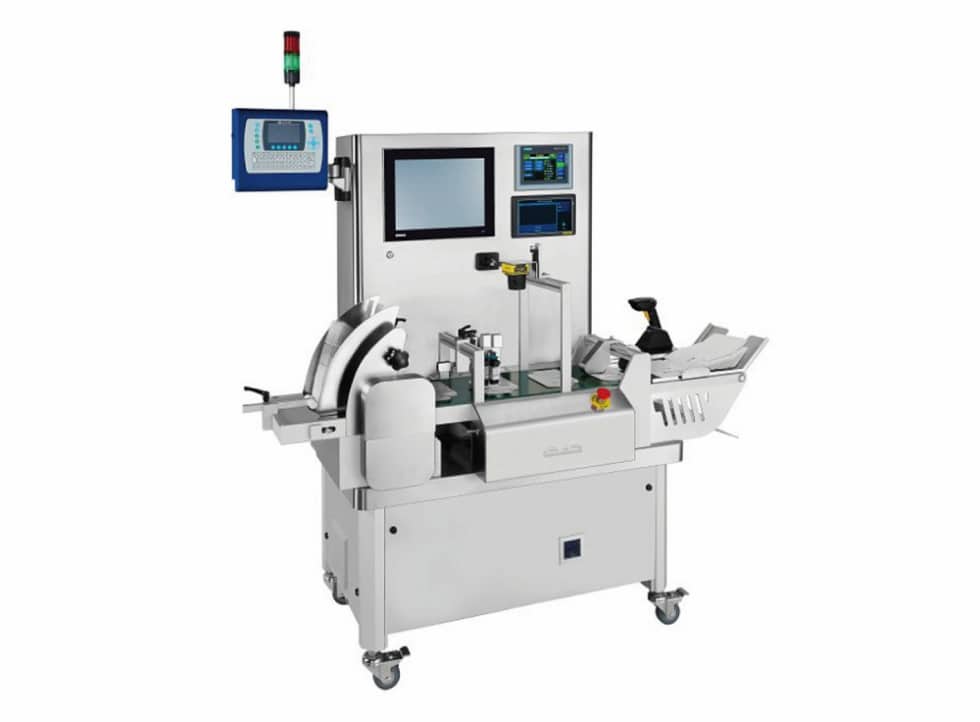

The CVC Flat Carton Printing and Inspection Machine is a compact system designed for packaging and pharmaceutical serialization and track & trace requirements.
Technical Specifications
| Productivity | Up to 120 PPM (subject to trial confirmation) |
| Applicable Size | Cartons (L x W x H): 70-200 x 105-260 x 0.1-2.0 mm |
| Power source | 220V, 50/60 HZ, 1 PH |
| Power Consumption | 800 VA (3.6 A) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 20.96 NL/min (0.74 CFM) |
| Consumption Machine Dimensions | 1,765 x 705 x 1,945 mm (5′-9″ x 2′-4″ x 6′-4″ ) |
| Machine Weight | 247 kg (543 lbs) |
| Operator’s Interface | IPC ADVANTECH Industrial PC 15” Touch Screen |
| Print System | Domino Gx-series inkjet printer – Applicable for printing GTIN, Batch Number, EXP, SN and Data Matrix Codes. |
| Vision Camera Verification System | – Type of Camera: Cognex In-Sight 7801 – Camera light source holder is included. |
