Top Load Case & Tray Packers
Unmatched Versatility for Retail-Ready Packaging

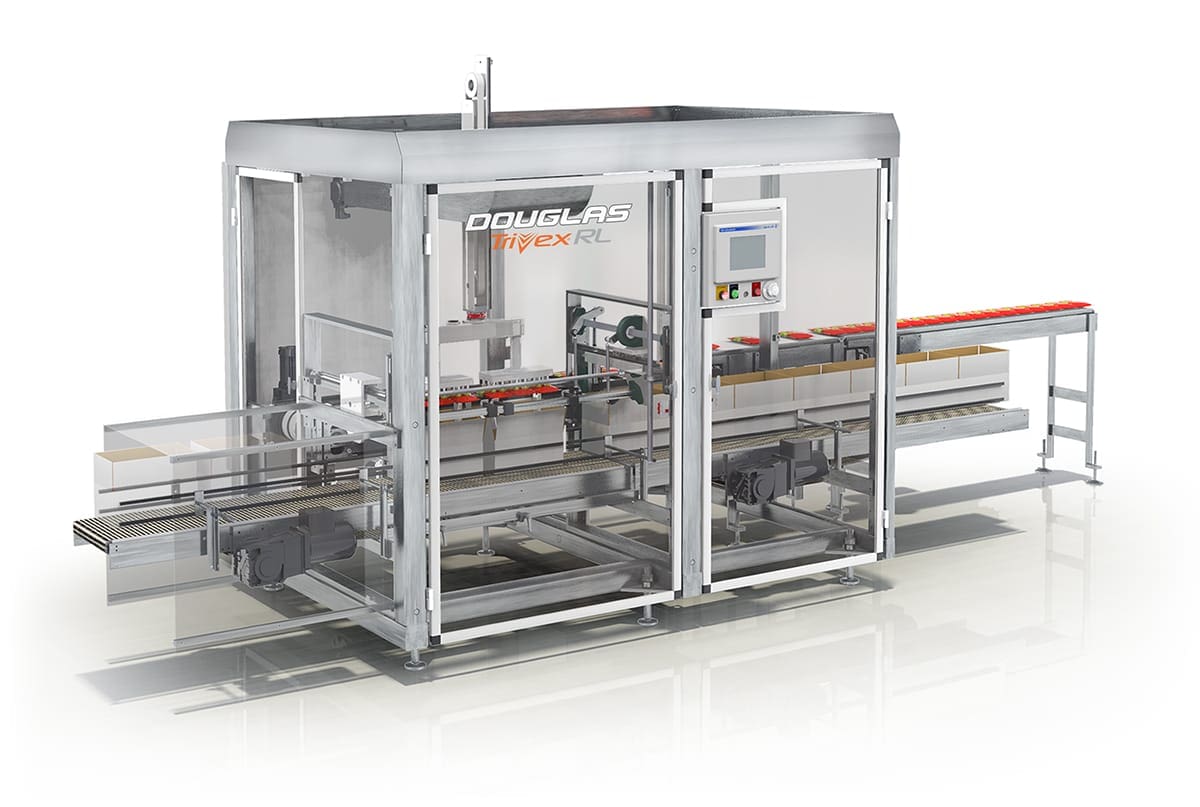

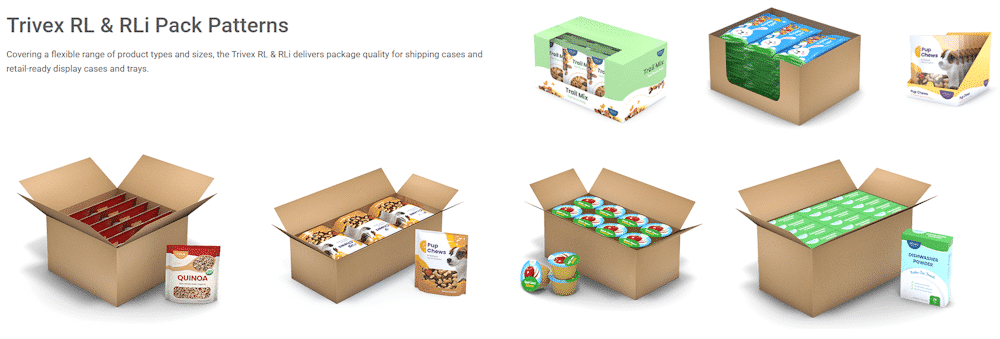

The Trivex RL & RLi pack bags, pouches, tubs, cups, bottles and more into almost any style of top load case or tray.
Specifications:
| Speed | Up to 150 cases/minute |
| Min. Case Size | 6″ (152.4 mm) x 5″ (127 mm) x 4″ (101.6 mm)* |
| Max Case Size | 24″ (609.6 mm) x 16″ (406.4 mm) x 16″ (406.4 mm)* |
| Adjustments | HMI selectable recipes, threaded screws, handwheels, hand knobs with position pointers and digital scales |
| Drive | Servo, pneumatic and AC drives |
| Electrical | Allen Bradley motion/logic control; NEMA12 wiring and enclosures; NEMA 4/4X wiring and enclosures (optional) |
| Power | 480 VAC, 50/60 HZ, 3 PH |
| Air | 90 PSI (6.2 bar) |
| RLi Only | |
| Case Flights | Lugged timing belt |
| Magazine Length | 6′ (1.85 m) |
| Closing System | Tape standard with glue option (Nordson ProBlue®) |
| Drive | Servo, pneumatic, and AC drives; DC magazine drive |
*Note: Measurements indicate Direction of Travel x Vertical x Across Machine
Max Simplicity for Retail-Ready Packaging

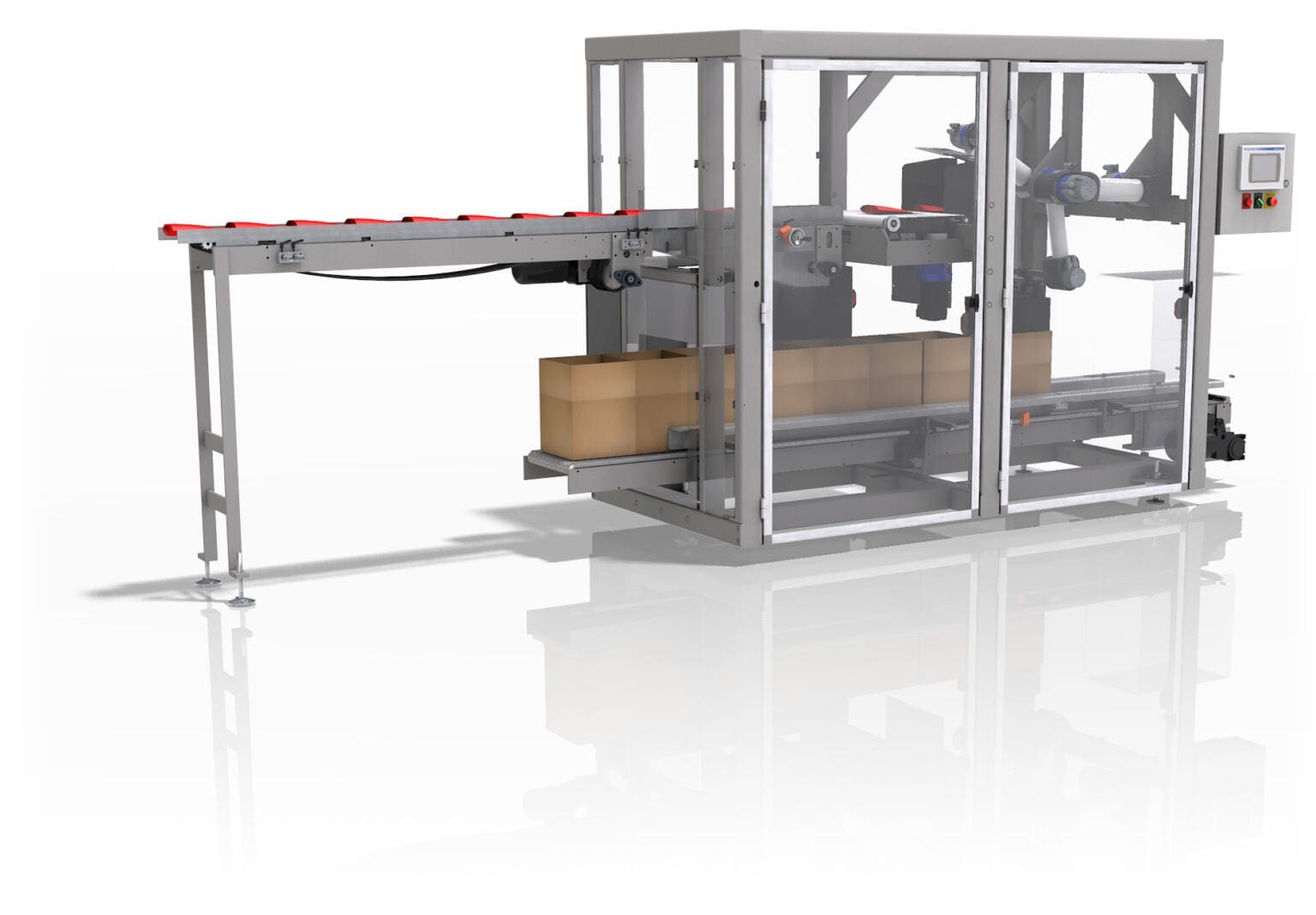

The TriVex SL and SLi are versatile case and tray packers designed for retail-ready packaging. Run pouches and bags in both vertical and flat pack orientations on a single machine with options for case erecting and/or sealing.
Specification:
| Product Rate | Up to 150 products/minute |
| Case Rate | Up to 25 cases/minute |
| Min. Case Size | Standard Minimum: 4″ x 4″ x 4.5″* |
| Max Case Size | Standard Maximum: 15″ x 10″ x 12″* |
| Product Type | Doypack, pillow bag, flat bottom bags and pouches |
| Pack Pattern Options | Single, dual, or triple facing packs for retail-ready display |
| Case Type | RSC & HSC; Separately erected tray, bliss, or other top-load-capable container |
| Payload | Approx. 7 lb (End effector and product not to exceed 15.5lb) |
* Note: Measurements indicate Direction of Travel x Vertical x Across Machine
Product Versatility for Pouches & Bags

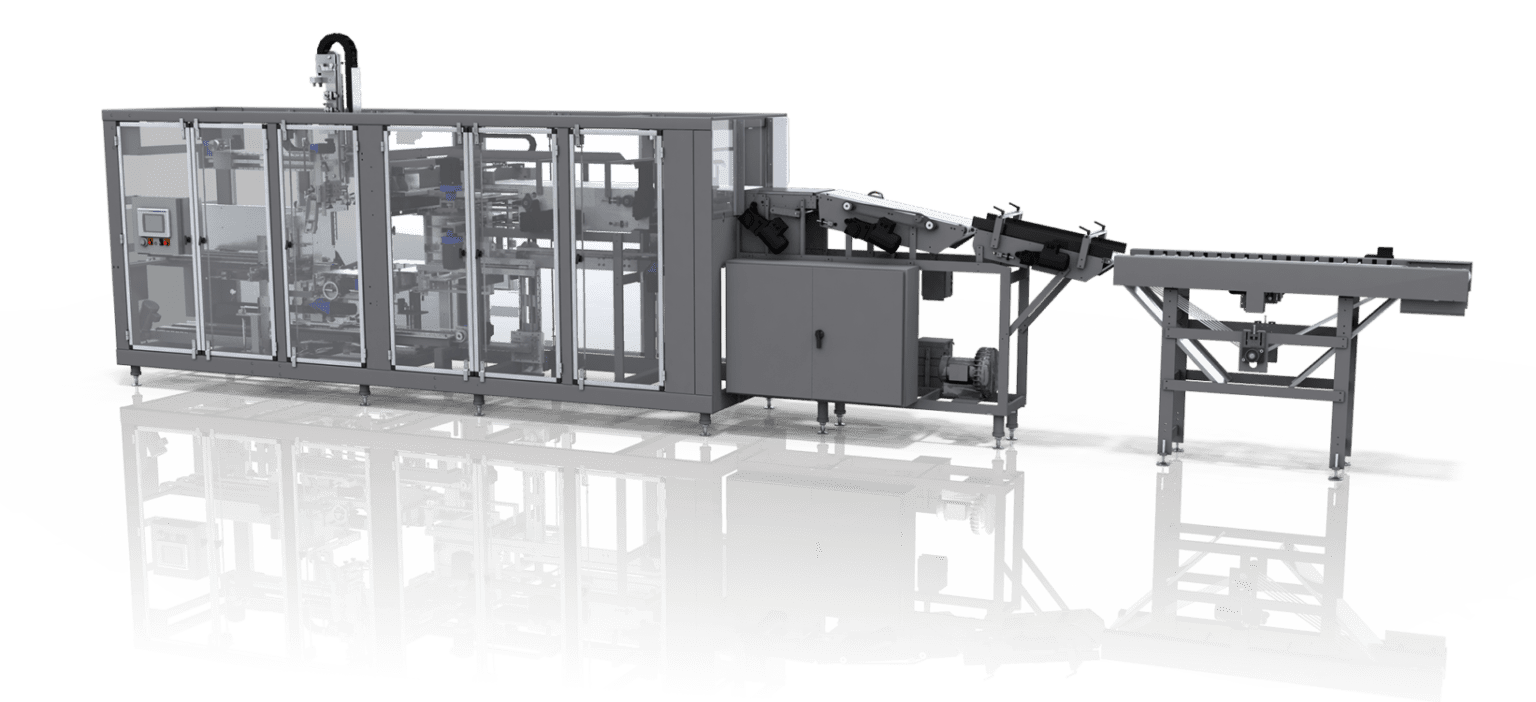

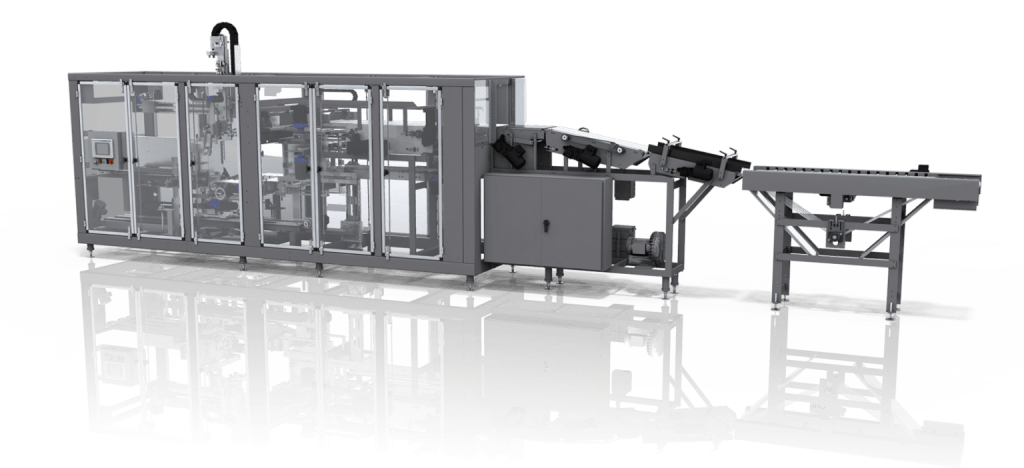

The TriVex CLi case packer is ideal for Individual Quick Frozen (IQF) products, such as non-free flowing frozen potatoes and vegetables, as well as pillow and gusseted bags.
Specifications:
Speed
Up to 70 bags/minute (product rate);
Up to 15 cases/minute (case rate)
Case Types
Corrugated
Min. Case Size
7″ (177.8 mm) x 5.75″ (146.05 mm) x 7″ (177.8 mm)*
Max Case Size
19.5″ (495.3 mm) x 14.5″ (368.3 mm) x 19.5″ (495.3 mm)*
Product Type
Individual Quick Frozen (IQF) products, pillow bags and gusseted bags
Payload Weight
40 lb pack patterns
* Note: Measurements indicate Direction of Travel x Vertical x Across Machine
