Powder Filler and Cappers

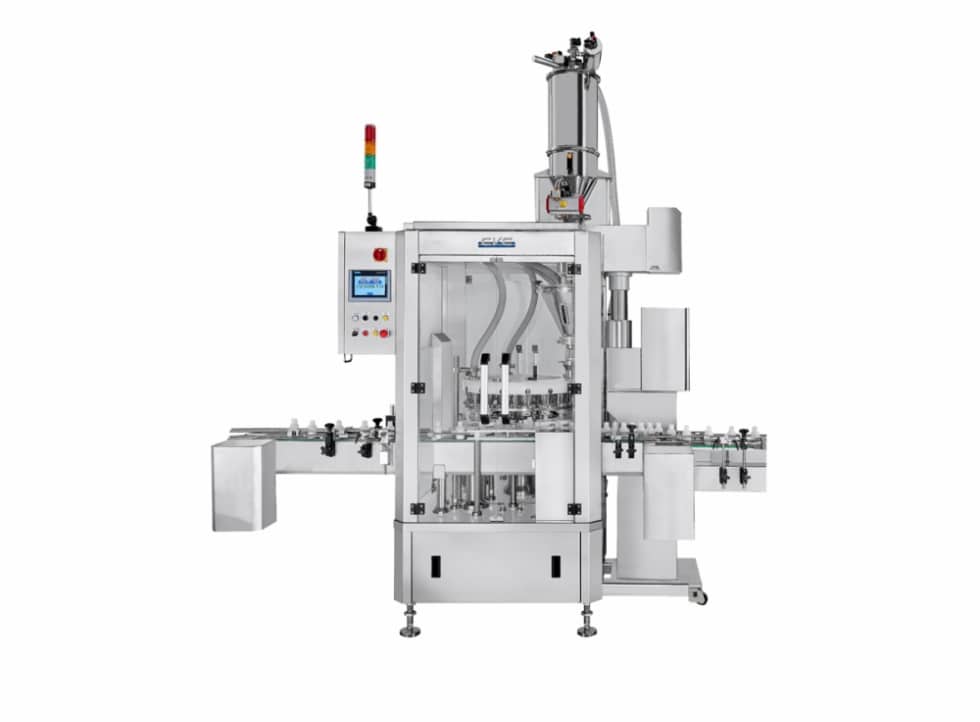

The CVC 6088-R16 Automatic Rotary Powder Filling Machine is designed to fill powder products into containers provided to its infeed conveyor and transported through its rotary continuous motion mechanism. The Powder dosing uses servo motor driven auger dosing system for accuracy volume.
The overall machine construction takes most applicable regulatory considerations nto account: cGMP, FDA, and it meets the requirements of most integrated powder filling-packaging lines for pharmaceutical and nutraceutical industries.
| No. of Filling Heads | 1 |
| Filling Station Number | 16 |
| Productivity | Up to 100 BPM (Vary with different products, and filling weight, subject to trial confirmation.) |
| Filling Volume | 9- 40 g (3/8- 1 3/8 oz) (Custom Fill Weights can be supported based on case by case basis study of the respective projects.) |
| Vacuum Supplying Capacity | 150-180 kg/hr (330-396 lbs/hr) |
| Hopper Diameter | Ø 300 mm (11 3/4”) |
| Hopper Capacity | 14 L (0.5 Cuft) |
| Power source | 380 V, 50/60 HZ, 3 PH |
| Power Consumption | 2,000 VA (3 A) |
| Air Pressure | 6 bar (87 psi) |
| Consumption Machine Dimensions | 1,915 x 1,213 x 2,465 mm (Excluding vacuum loader) (6’-3” x 4” x 8”-1”) |
| Machine Weight | 1,100 kg (2,425 lbs) |
| Noise Level | ≤ 80 dB |

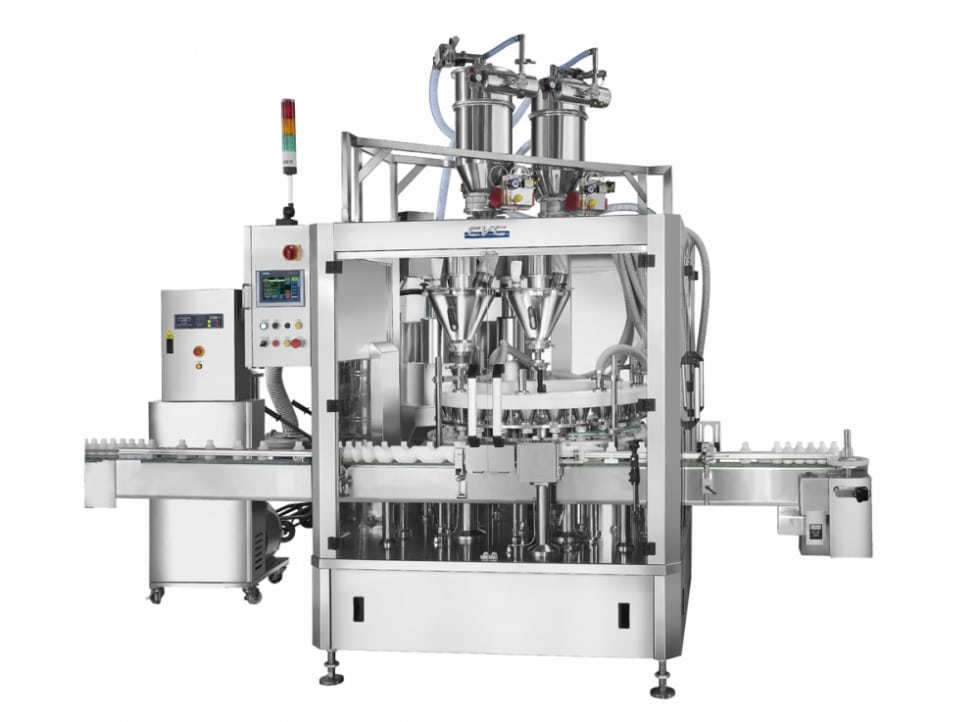

The CVC 6088-2R24 Automatic Rotary Powder Filling Machine is designed to fill powder products into containers provided to its infeed conveyor and transported through its rotary continuous motion mechanism. The Powder dosing uses servo motor driven auger dosing system for accuracy volume.
The overall machine construction takes most applicable regulatory considerations not into account: cGMP, FDA, and it meets the requirements of most integrated powder filling-packaging lines for pharmaceutical and nutraceutical industries.
| No. of Filling Heads | 2 |
| Filling Station Number | 24 |
| Productivity | Up to 150 BPM (Vary with different products, and filling weight, subject to trial confirmation.) |
| Filling Volume | 9- 40 g (3/8- 1 3/8 oz) (Custom Fill Weights can be supported based on case by case basis study of the respective projects.) |
| Vacuum Supplying Capacity | 200-230 kg/hr (440-507 lbs/hr) |
| Hopper Diameter | Ø 300 mm (11 3/4”) |
| Hopper Capacity | 14 L (0.5 Cuft) |
| Power source | 380 V, 50/60 HZ, 3 PH |
| Power Consumption | 7,740 VA (12 A) |
| Air Pressure | 6 bar (87 psi) |
| Consumption Machine Dimensions | 3,300 x 2,360 x 2,980 mm (Including vacuum loader) (10′-10″ x 7′-1″ x 9′-9″) |
| Machine Weight | 2,000 kg (4,409 lbs) |
| Noise Level | ≤ 80 dB |
