Leaflet TopSerters

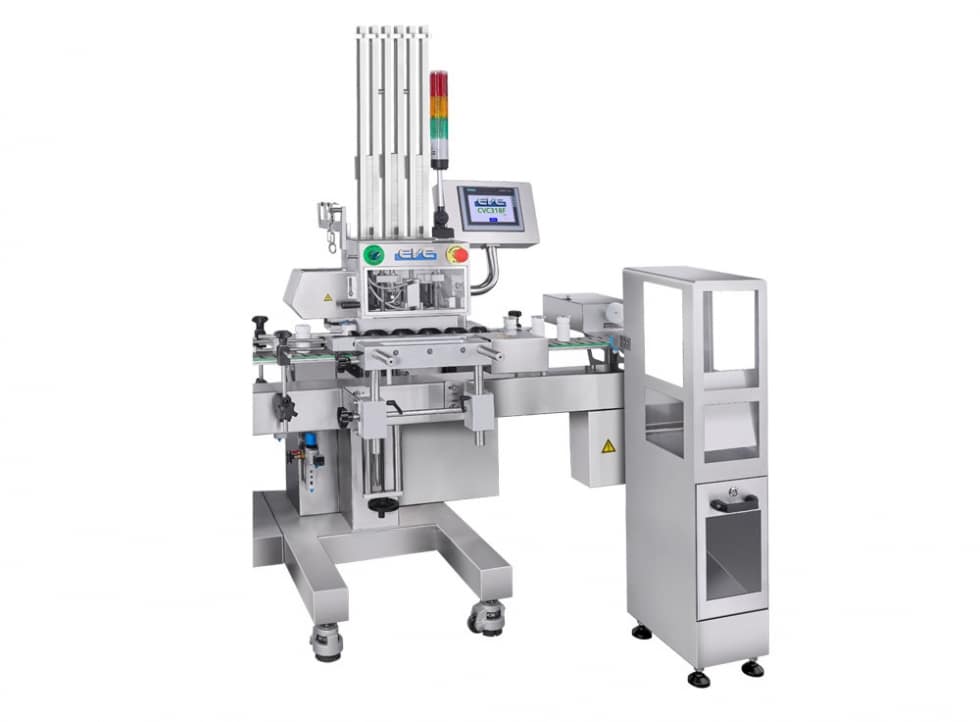

CVC 318F are designed for the emerging trend of package reducing in pharmaceutical and nutraceutical industry, external carton is unnecessary for leaflet insertion anymore.
Technical Specifications
| Type | U4 |
| Productivity | Up to 100-120 BPM (base on 40-100 cc round bottle, subject to trial confirmation) |
| Applicable Size | Bottle: Dia.: Ø30-120 mm (1 1⁄4″ to 4 1⁄2″) with Cap Height: 50-200 mm (2” to 7 3⁄4″) Manual: Length: 25.4-38.1 mm (1″ to 1 1⁄2″) Width: 25.4-38.1 mm (1″ to 1 1⁄2″) Height: 3-14 mm (1⁄8″ to 1⁄2″) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 5,000 VA (22.8 A) (Including hot melt feeder system) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 233 NL/min (8.2 CFM) |
| Machine Dimensions ( L x W x H ) | 1,425 x 1,200 x 1,935 mm (approx) (4’-8” x 3’-11” x 6’-4”) |
| Machine Weight | 191 kg (421 lbs) |
| Noise Level | ≤ 70 dB |

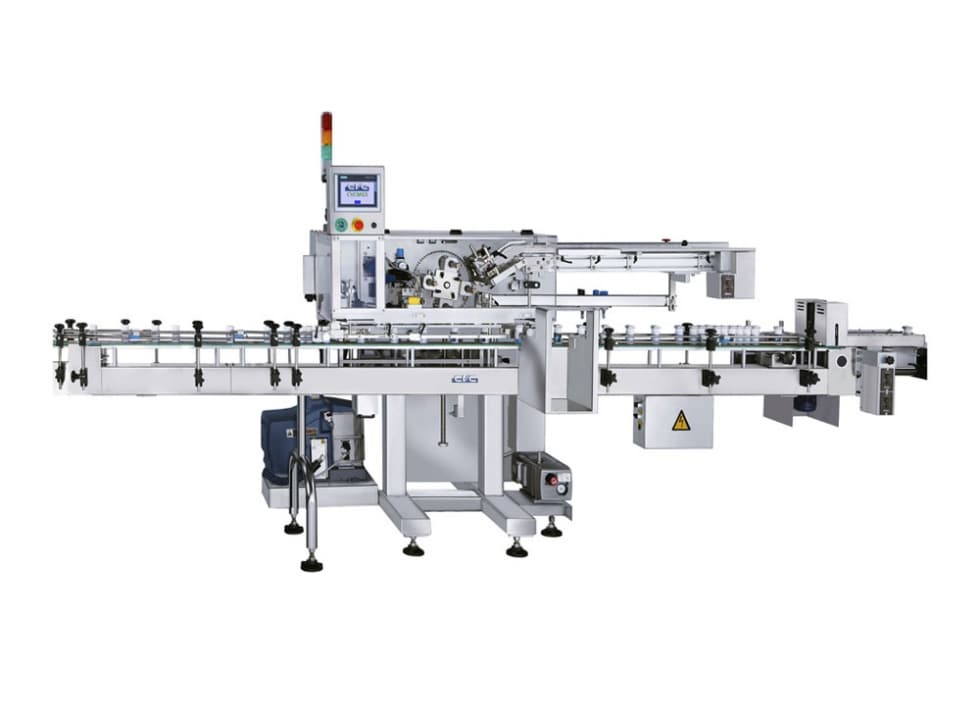

CVC MGS is a high-performance, cGMP-compliant outsert feeder system equipped with a four-head rotary mechanism, ergonomic loading design, advanced detection sensors, and a Siemens PLC interface; ensuring precise, efficient, and reliable application of outserts to bottles with minimal cleanup and downtime.
Technical Specifications
| Type | U4 |
| Productivity | Up to 180-200 BPM (base on 40-100 cc round bottle, subject to trial confirmation) |
| Applicable Size | *Bottle: Dia.: Ø25.4-124 mm (1″ to 4 3⁄4″) with Cap Height: 63.5-203 mm (2 1⁄2” to 7 3⁄4″) *Manual: Length: 25.4-76.2 mm (1 ” to 3″) Width: 25.4-76.2 mm (1 ” to 3″) Height: 3-14 mm (1⁄8″ to 1⁄2″) |
| Power source | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 6,710 VA (30.5 A) (Including hot melt feeder system) |
| Air Pressure | 6 bar (87 psi) |
| Air Consumption | 299 NL/min (10.6 CFM) |
| Consumption Machine Dimensions | 2,830 x 1,050 x 2,095 mm (approx) (9’-3” x 3’-6” x 6’-10”) |
| Machine Weight | 350 kg (772 lbs) |
| Noise Level | ≦70 dB |
