Inspection Systems

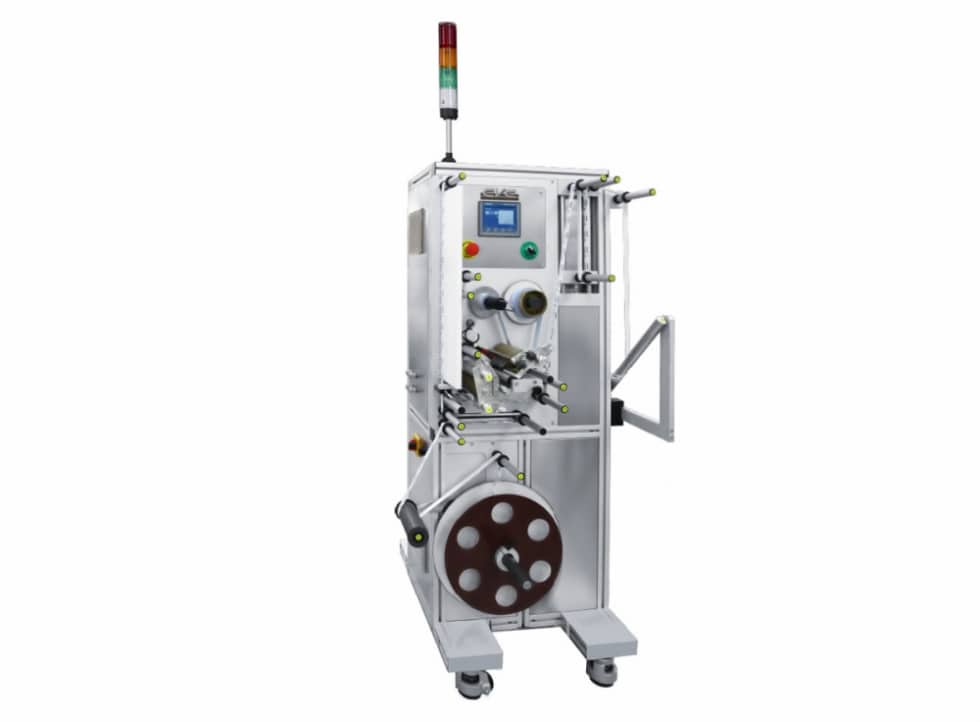

The CVCL52 Label Inspection and Ejection System is the best solution for meeting customers’ requirements of label management. With the solution, customers can simply save time and increase labeling productivity through automatic label coding, bar code reading, vision inspection and ejection.
Technical Specifications
| Type | C |
| Productivity | Dispensing Speed：Max. 50 M/min |
| (subject to trial confirmation) | Ejection Output：Max. 250 LPM |
| Applicable Product | CVC 302 (Siemens S7-1200) |
| Power | 220 V, 50/60 HZ, 1 PH |
| Power Consumption | 1,300 VA (5 A) |
| Air Pressure | 4~6 kgf/cm2 (Bar) |
| Air Consumption | 57 NL/min (2 CFM) |
| Consumption Machine Dimensions | 834x 736x 2,145 mm (Including tower lamp) (2’-9”x 2’-5”x 7’-1”) |
| Label Width / Height | 15~150 mm (5/8″ to 5 7/8″) |
| Label Length | 40~180 mm (1 5/8″ to 7″) |
| Machine Weight | 160 kg (352 LBS) |
