Heat Shrink Tunnel and Steam Shrink Tunnel

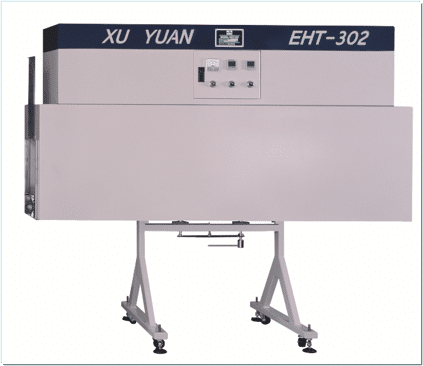

The EHT-302 Heat Shrink Tunnel is designed to provide consistent and efficient heat shrinking performance, making it an excellent partner for shrink label machines.
Recommended Shrink Label Machine Combinations:
- XYLB-100 (Link Page)
- XYL-250 (Link Page)
Key Features:
- Handles a wide variety of bottle shapes, including square, oval, and curved designs.
- Works seamlessly with common shrink films like PVC, PET, and OPS.
- Features a unique internal airflow design to ensure even heat distribution for a consistent, high-quality finish.
- Offers precise temperature control with an accuracy of ±5°C.
- Includes a clear temperature display and gauge for accurate, real-time monitoring.
- Designed for straightforward installation and simple operation.
- Features an adjustable gate width (from 90 mm to 200 mm) to quickly adapt to different product sizes.
- Allows for an adjustable machine height to easily integrate into your existing production line.
Specifications:
| Mechanical dimensions | 2000L x 1000W x 2000H (mm) |
| Tunnel Dimensions | 2000L x 160W x 350H (mm) |
| Power Supply | 3-Phase / 220V – 380V |
| Main Motor Power | 0.75kW |
| Heating Power | 12kW |
The EHT-302 ensures smooth, even shrinking for containers across personal care, home care, and FMCG packaging applications.
The EHTC Series Shrink Tunnels are compact solutions designed for tamper-evident cap seals and neck bands applications. With simple assembly and flexible adjustment, they are ideal for operations requiring efficient shrink performance in a smaller footprint.
Recommended Shrink Label Machine Combinations:
- XYC-600
- XYC-300
Key Features:
- Models: EHTC-100 (1.0 m) and EHTC-150 (1.5 m)
- Handles a wide variety of bottle shapes, including square, oval, and curved designs.
- Works seamlessly with common shrink films like PVC, PET, and OPS.
- Features a unique internal airflow design to ensure even heat distribution around the cap and neck areas
- Offers precise temperature control with an accuracy of ±5°C.
- Includes a clear temperature display and gauge for accurate, real-time monitoring.
- Designed for straightforward installation and simple operation.
- Compact design with Adjustable machine height to easily integrate into existing production line.
- Specially designed for cap seal and small label applications
- Expandable – add an additional tunnel to increase speed capacity
Specifications:
| Mechanical dimensions | EHTC 100: 1060mm (L) x 140mm (W) x 140mm (H) EHTC 150: 1560mm (L) x 140mm (W) x 140mm (H) |
| Tunnel Dimensions | EHTC 100: 1000mm (L) x 85mm (W) x 95mm (H) EHTC 150: 1500mm (L) x 85mm (W) x 95mm (H) |
| Power Supply | 3-Phase / 220V – 380V |
| Main Motor Power | 0.75kW |
| Heating Power | 12kW |
These tunnels are widely used in beverage, juice, and dairy packaging, ensuring strong, tamper-evident sealing with consistent results.
The ST 2180 Steam Shrink Tunnel is built for efficient and precise sleeve shrinking, offering reliable performance for medium-to-high-speed production lines.
Recommended Shrink Label Machine Combinations:
- XYLB-100
- XYL-250
Key Features:
- Length: 1.8 m (supports up to 250 bpm with 250 ml bottle format as standard)
- Durable stainless steel tunnel structure
- Adjustable nozzles for different bottle formats
- Visible temperature gauge for accurate monitoring
- Integrated steam blower for exhaust
- Stable steam supply for consistent results
- Optional external valve available for special containers
Specifications:
| Model | ST-2180 |
| Power Supply | 3-Phase / 220V – 410V |
| Blower Motor | 0.4kW |
| Operating Steam Pressure | 0.5 – 3.5 kg/cm² |
| Steam Consumption | 250 – 350 kg/hr |
| Machine Dimensions | 1800mm (L) x 500mm (W) x 610mm (H) |
| Tunnel Dimensions | 1800mm (L) x 150mm (W) x 420mm (H) |
| Machine Weight | Approx. 200 kg |
The ST 2180 is ideal for dairy, sauces, beverages, and specialty bottle applications, ensuring high-quality shrink performance with flexibility and durability.

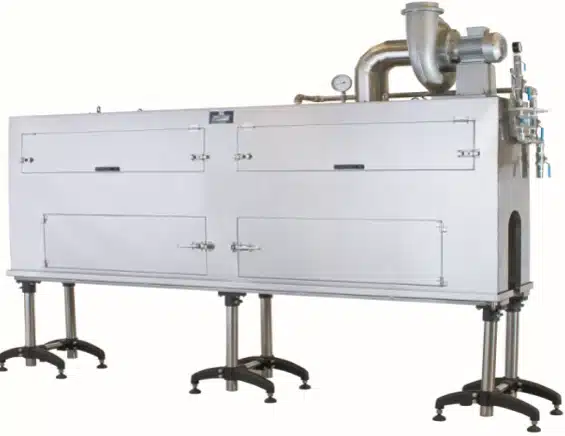

The ST 2280 Steam Shrink Tunnel is designed for high-speed production lines, delivering precise, uniform shrink performance across a wide range of bottle formats.
Recommended Shrink Label Machine Combinations:
- XYL-350
- XYL-450
Key Features:
- Length: 2.8 m (supports up to 450 bpm with 250 ml bottle format as standard)
- Durable stainless steel tunnel structure
- Adjustable nozzles for different bottle formats
- Visible temperature gauge for easy monitoring
- Integrated steam blower for exhaust management
- Consistent and stable steam supply
- Optional features:
- External valve for special containers
- Glass window for inspection
The ST 2280 is ideal for beverages, energy drinks, and other high-volume packaging applications, providing high capacity, flexibility, and reliability.
