Economic Pre-Made Horizontal Pouch Filling Machines

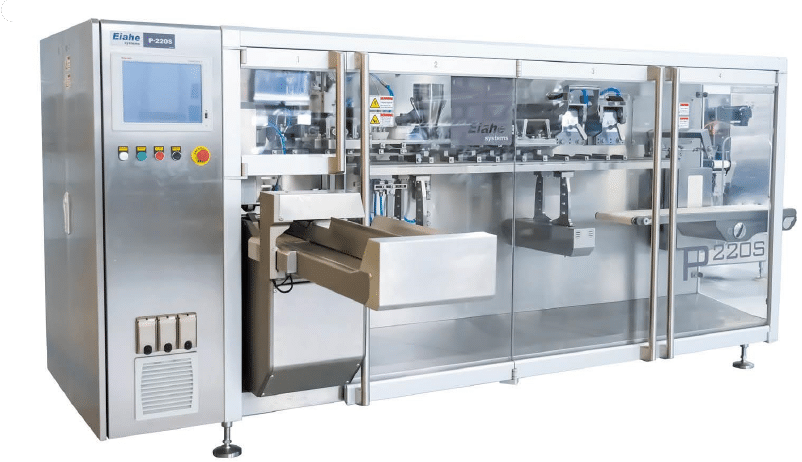

The P-220S is a high-performance horizontal packaging solution designed for versatility, speed, and precision. Suitable for a variety of pouch types, it ensures efficient packaging while maintaining product integrity. Built with advanced automation and user-friendly controls, this machine is ideal for industries requiring consistent, high-quality output.
Key Features
- Compatible with multiple pouch styles including three-side, four-side, stand-up, and shaped pouches.
- High-speed performance of up to 70 pouches per minute.
- Low noise operation for a better working environment.
- Durable stainless-steel construction for long-term reliability.
Technical Specifications
| Parameter | Specification |
| Size of Pouch (WxHxB) | Min. 85 × 140 × (25 × 2) mm / Max. 205 × 300 × (50 × 2) mm |

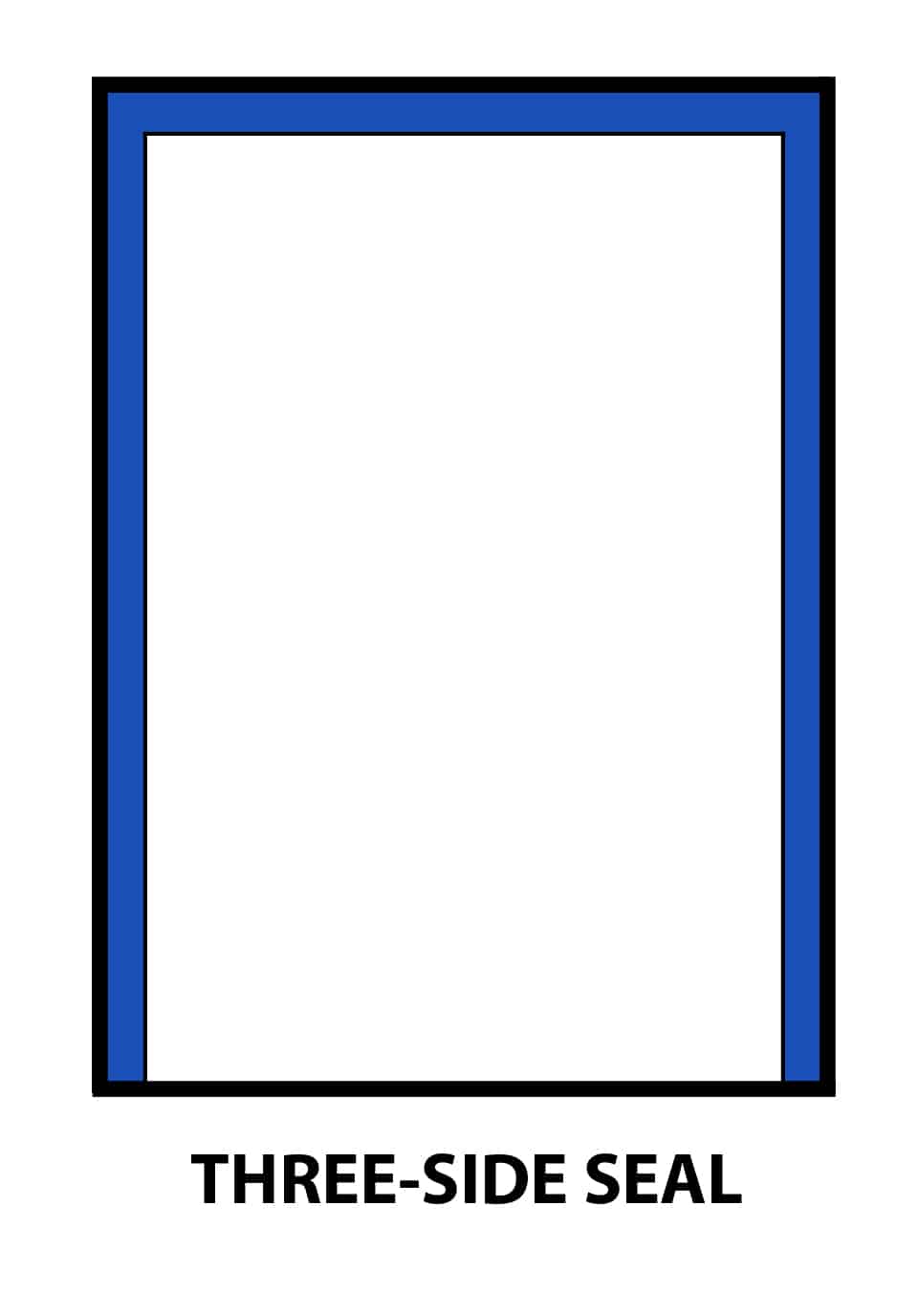

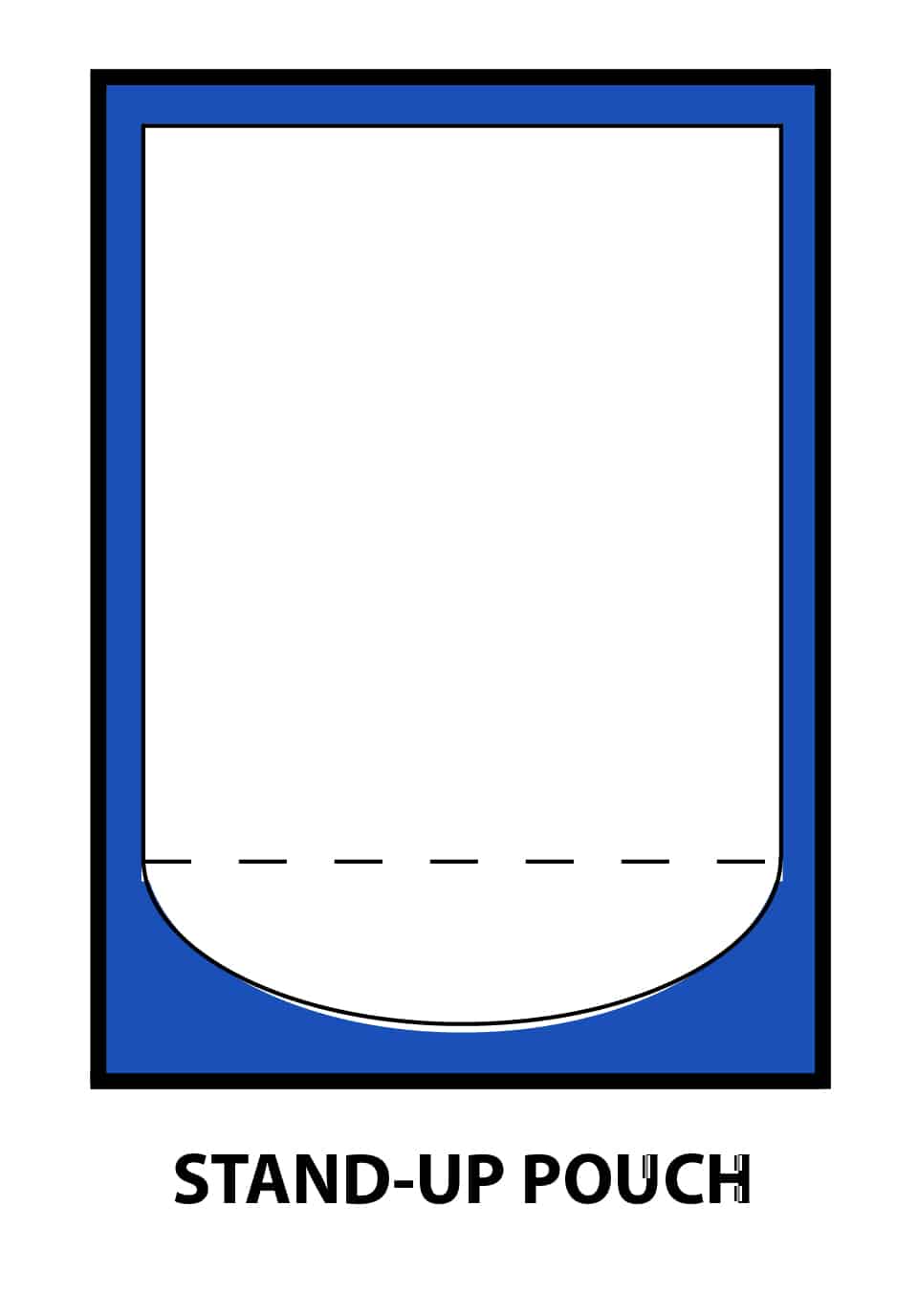

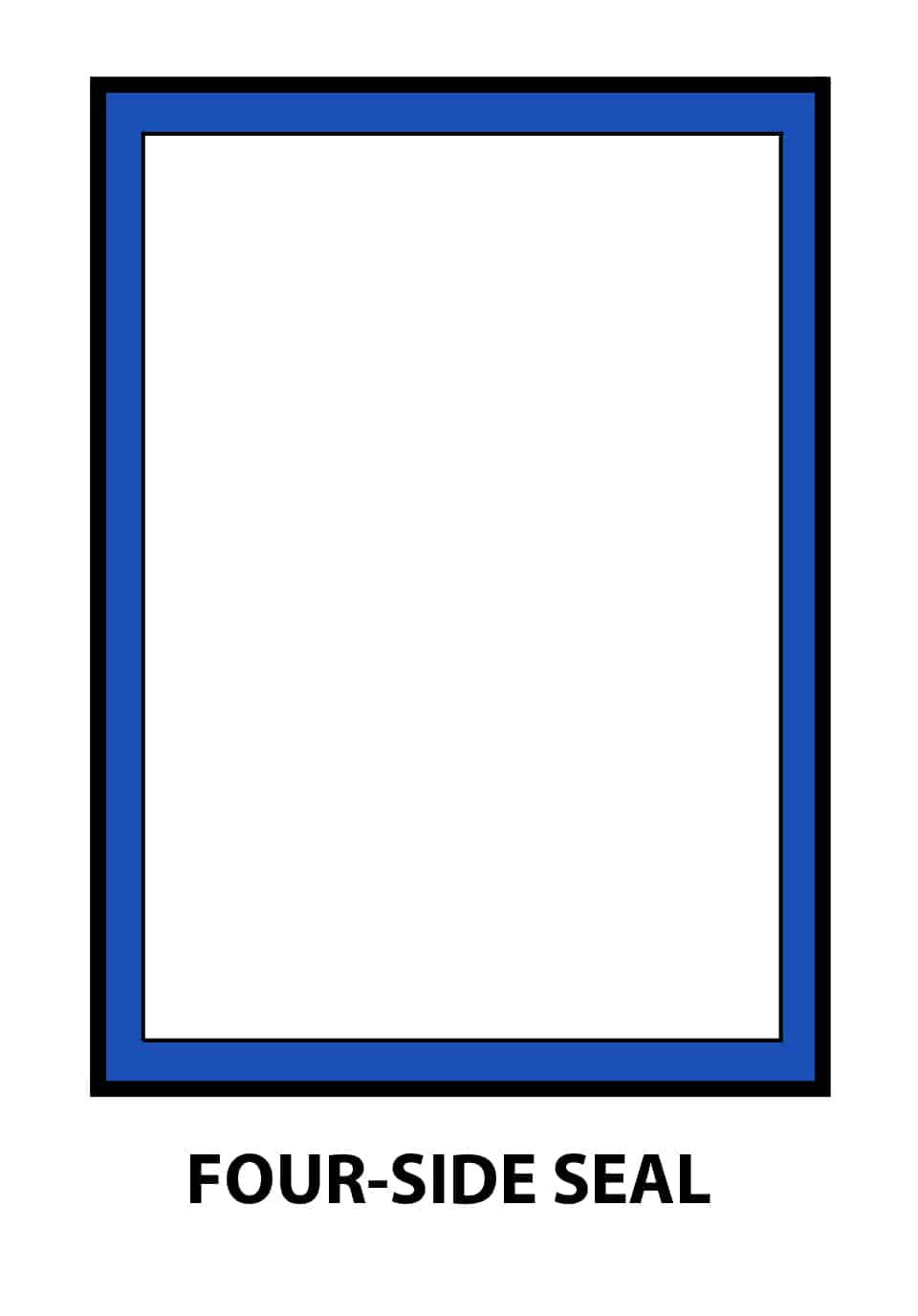

| Shape of Pouch | Three-side pouch, four-side pouch, stand-up pouch, shaped pouch |
| Speed Range | 40–70 pouches/min |
| Power Supply | AC380V |
| Power Consumption | 7.5 kW |
| Air Consumption | 0.6–1.5 m³/min |
| Noise Level | <80 dB |
| Net Weight | 3700 kg |
| Machine Dimension (LxWxH) | 3460 × 2085 × 1470 mm |

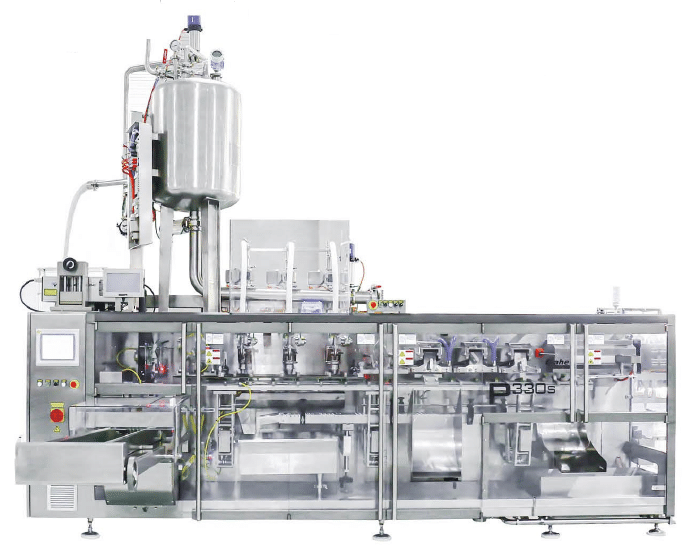

The P-330S is a robust, high-precision packaging solution designed to handle larger pouch sizes with consistent efficiency. Built for versatility, it accommodates multiple pouch types and is ideal for industries that require reliable, high-quality packaging performance.
Key Features
- Compatible with three-side, four-side, stand-up, and shaped pouches.
- Handles larger pouch dimensions for more versatile packaging needs.
- High-precision, consistent sealing and filling performance.
- Low-noise operation and energy-efficient design.
Technical Specifications
| Parameter | Specification |
| Size of Pouch (WxHxB) | Min. 150 × 200 × (25 × 2) mm / Max. 315 × 450 × (60 × 2) mm |

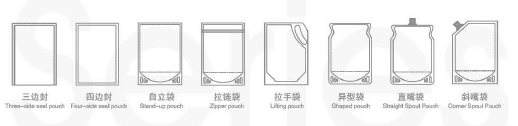

| Shape of Pouch | Three-side pouch, four-side pouch, stand-up pouch, shaped pouch |
| Speed Range | 20–55 pouches/min |
| Power Supply | AC380V |
| Power Consumption | 7.5 kW |
| Air Consumption | 0.6–1.5 m³/min |
| Noise Level | <80 dB |
| Net Weight | 4500 kg |
| Machine Dimension (LxWxH) | 4785 × 3241 × 1560 mm |

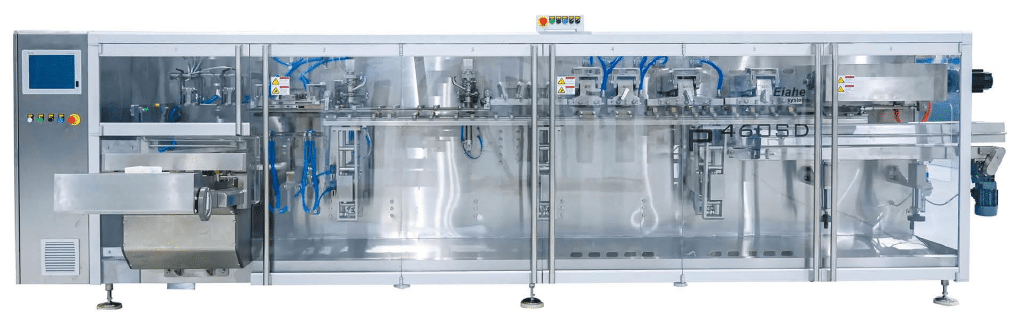

The P-460SD is a high-capacity, precision-engineered packaging solution designed for superior speed and efficiency. This machine accommodates a variety of pouch styles and sizes, making it ideal for large-scale production environments that demand accuracy, reliability, and consistent output.
Key Features
- Suitable for three-side, four-side, stand-up, and shaped pouches.
- Handles medium-to-large pouch sizes with high-speed performance.
- Precision filling and sealing with a robust, low-noise operation.
- Energy-efficient design with optimised air and power usage.
Technical Specifications
| Parameter | Specification |
| Size of Pouch (WxHxB) | Min. 100 × 140 × (25 × 2) mm / Max. 200 × 330 × (50 × 2) mm |

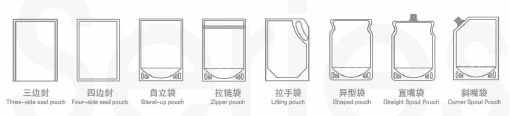

| Shape of Pouch | Three-side pouch, four-side pouch, stand-up pouch, shaped pouch |
| Speed Range | 40–80 pouches/min |
| Power Supply | AC380V |
| Power Consumption | 9.5 kW |
| Air Consumption | 0.6–1.5 m³/min |
| Noise Level | <80 dB |
| Net Weight | 5500 kg |
| Machine Dimension (LxWxH) | 5550 × 3095 × 1560 mm |
