Cartoner/Shrinks Machines

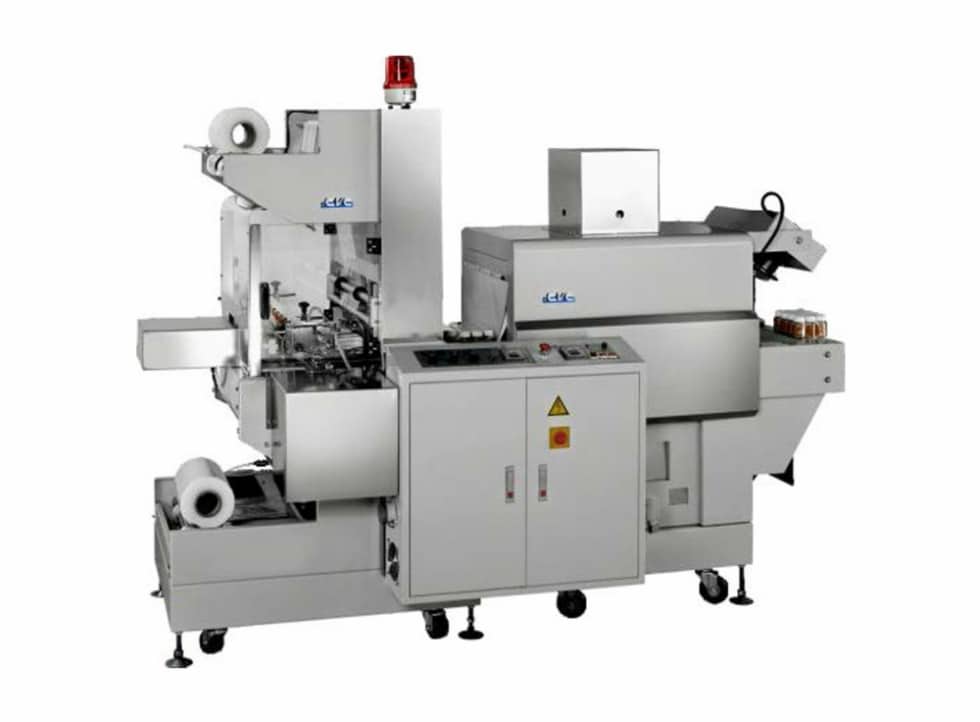

The CVC 1661/1651 Shrink Bundler & Heat Tunnel is a user friendly, compact machine designed to shrink bundle small and medium sized products. Machine options include multiple in-feed configurations and a single or double discharge depending upon rate requirements. The 1650/1651 is an ideal machine for the Nutraceutical, Pharmaceutical, Food and Beverage Markets.
- Built to cGMP Standards
- Painted Steel or Stainless Steel Construction
- Economical Value
- Quick & Easy Change Over
Technical Specifications
| Power source | 220V, 50/60 Hz, 3 Phase |
| Power Consumption | 50-75 AMP |
| Air Volume | 280L (Plant air must be dry and clean) |
| Air Pressure | Minimum 87 psi (ISO 8573-1) |
| Speed | Up to 100 Bottles per Minute (BPM) |
| Single-Bundle Loader | Max width: 16” (410mm) Max length: 14” (355mm) Max height: 8 ¾” (222mm) |
| Two-Bundle Loader | Max width: 11 ½” (292mm) Max length: 9 ¾” (247mm) Max height: 8 ¾” (222mm) |
| Film Roll Specs | Single-Bundle Loader Max roll width: 20 ½” (520mm) Two-Bundle Loader |

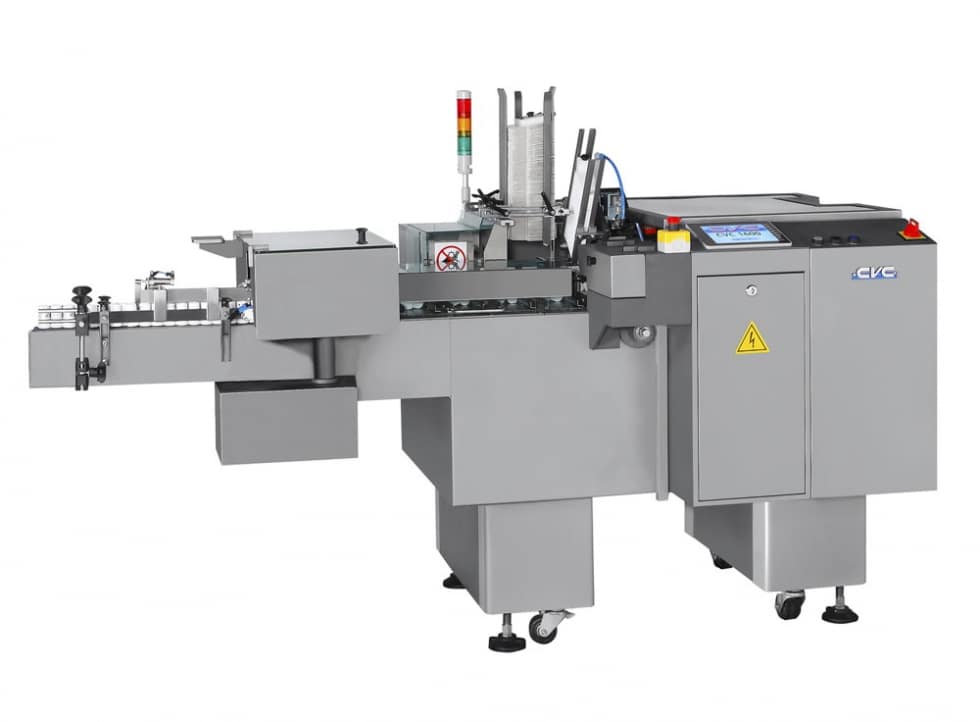

The CVC 1600 is a proven and durable intermittent cartoner, it is suitable for a wide range of products, such as bottle, blister and tube etc. used in food, pharmaceutical, nutraceutical and personal care, etc. The CVC 1600 a compact and excellent packaging machine that perform carton erection, pre-folded leaflet insertion, embossing coding on carton flap and carton closing with tuck-in or hot melt glue sealing. It works perfectly for both stand-alone operation and packaging line integration.
Technical Specifications
| Applicable Product | Bottle, Blister and Tube |
| Applicable Size | ●Bottle： Diameter：⅜” to 2 ½” (11 mm – 65 mm) Height：2 ⅛” to 7 3⁄4″ (55 mm – 200 mm) ●Carton size range(L x W x H)： ●Folded leaflet dimensions(L x W) |
| Power source | 220V, 50/60 HZ, 1 phase |
| Power Consumption | 1500 VA (7 A) |
| Air Pressure | 4 bar (60 psi) (ISO 8573-1) |
| Air Consumption | 140 NLit/m (5cfm) |
| Consumption Machine Dimensions |
D 3′-8″ x 2′-2″ x 6′-11″ (1104mm x 650mm x 2090mm) (L x W x H) |
| Speed |
Up to 40~50 cartons per min. (actual output is subject to our factory trial test and confirmation) |
| Machine Weight | 720 kg (1588 lbs) |
| Noise Level | 78 dB |
