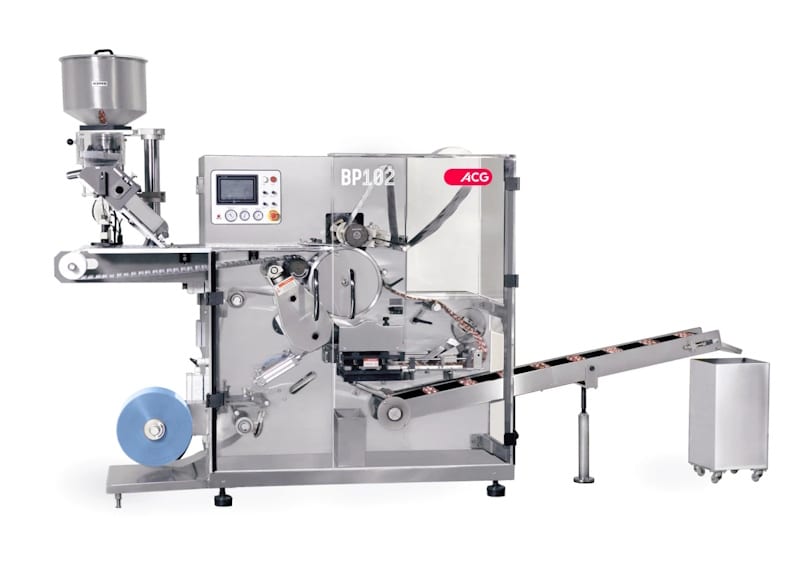

BP 102
About the BP 102
A compact, high-performance, cost-effective blister-packaging machine with robust rotary-forming and sealing technology. Producing high-quality thermoform blisters efficiently, BP 102 is perfect for the cost-conscious pharmaceutical industry and features unique single-drum technology for full operational flexibility.
Applications
Blister packaging of solid dosage products such as tablets, hard capsules and soft gelatin capsules
Features | Benefits | |
|---|---|---|
| A single drum for forming and sealing |  | Better blister quality, with fewer format parts |
| Available in single and twin-station configurations | | Flexibility for a wide range of blister requirements |
| Compact footprint | | Can be installed easily in limited space |
| Easy-fit punch-tool assembly | | Faster, easier and more reassuring changeovers |
Technical specification | |||
| Output | Up to 4.5 m/min (Thermoforming) | ||
| Forming depth | Up to 12 mm (Thermoforming) | ||
| Maximum blister size | 200 mm x 100 mm | ||
| Forming materials | PVC, PVC/PVdC, Triplex (PVC/PE/PVdC) | ||
| Lidding materials | Push-through foil, child-resistant foil, peelable (paper) | ||
