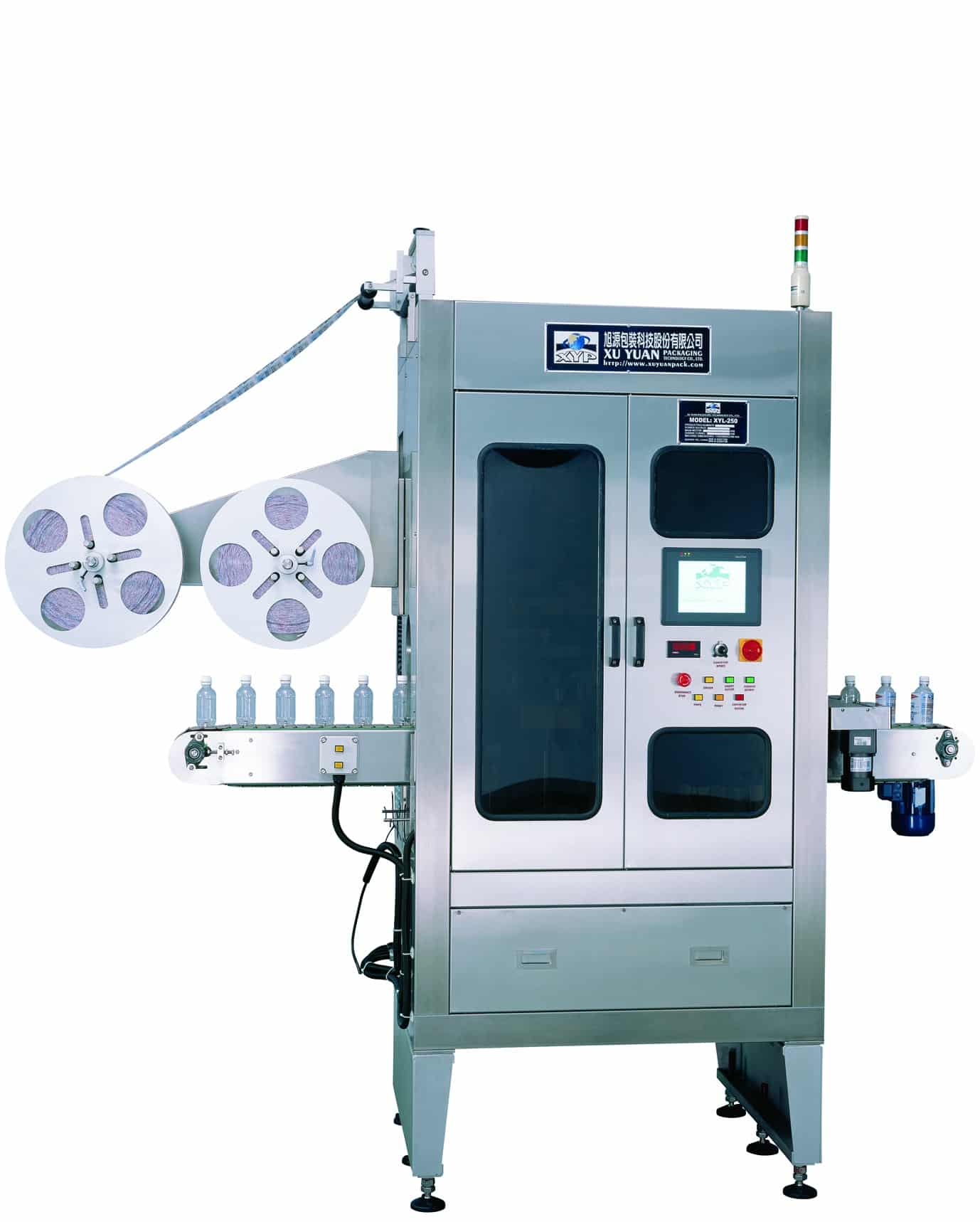

Automatic Shrink Label Machines
The Automatic Shrink Label Machine series is designed for medium to high-speed production lines, offering precise sleeve application with flexibility and reliability.
Technical Features:
- Linear machine design
- Sleeve feed via a stand-alone buffer system
- Flexible cutting length application
- User-friendly HMI
Options Available:
- Sleeve supply unit for reel change-over without machine stop
- Customization available for specific requirements

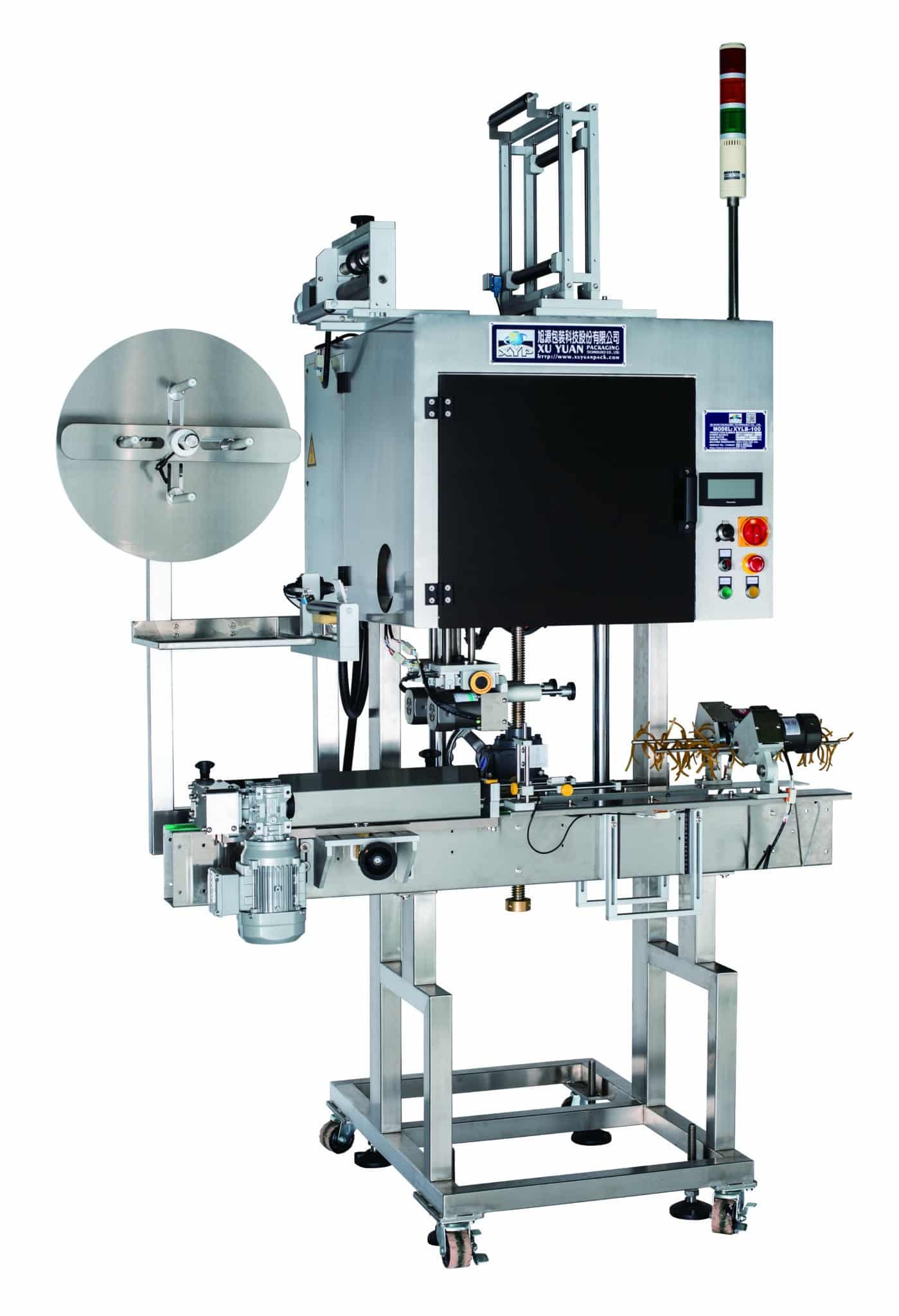

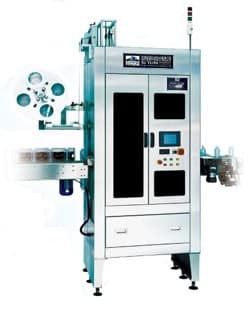

| XYLB-100 | XYL-100 | XYL-250S | |
 |
 |
 |
|
| Applications: | |||
| Diameter: min 25 mm, max 125 mm | |||
|
· Lay Flat (LF): 60 mm to 210 mm · Cut Length (CL): 30 mm to 200 mm |
|||
|
· Full Body: up to 4,800 BPH · Tamper Evident: up to 6,000 BPH |
· Full Body: up to 6,000 BPH · Tamper Evident: up to 7,500 BPH |
· Full Body: up to 12,000 BPH · Tamper Evident: up to 15,000 BPH |
|
These machines are widely used in food, dairy, and beverage industries for both full-body shrink sleeves and tamper-evident applications, ensuring high-quality packaging presentation.

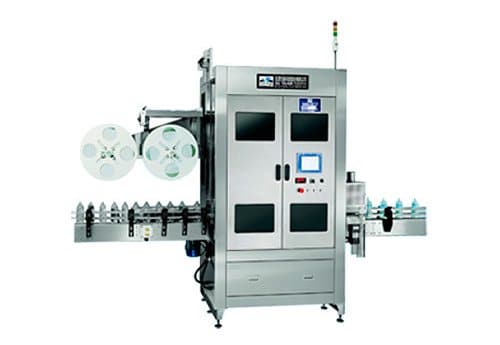

The XYL-450S Shrink Label Machine is a high-speed, linear solution designed for precision, flexibility, and efficiency in demanding production environments.
Technical Features:
- Linear machine design
- Sleeve feed via a stand-alone buffer system
- Flexible cutting length application
- User-friendly HMI
- Servo-controlled cutting and driver rollers for precise label length
Options available:
- Reel change-over without machine stop
- Customization available for specific requirements
- Parameter setting storage for multiple bottle formats
| XYL-450S | |
 |
|
| Applications: | |
| Container Size | Diameter: min 25 mm, max 125 mm |
| Sleeve Dimensions |
· Lay Flat (LF): 60 mm to 210 mm · Cut Length (CL): 30 mm to 300 mm |
| Operating Speed |
· Full Body Sleeving: up to 24,000 BPH · Tamper Evident Sleeving: up to 27,000 BPH |
The XYL-450S is ideal for high-volume beverage, dairy, and food packaging lines, offering maximum speed, flexibility, and accuracy in shrink sleeve applications.

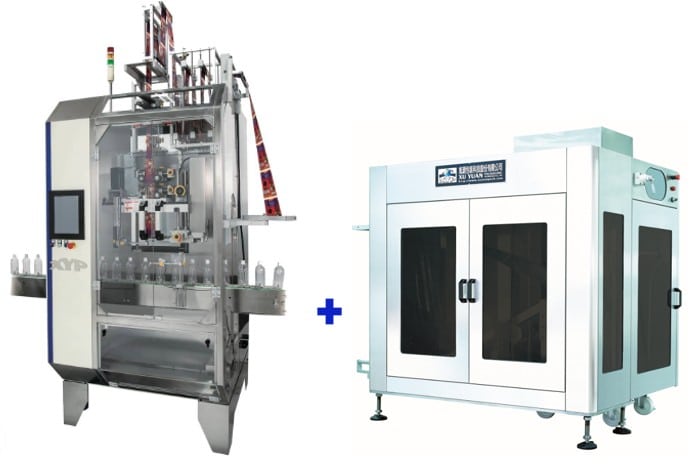

The XYL-600 Shrink Label Machine, paired with the Plenty Reel System, delivers high-speed, continuous labelling for large-scale production lines. It combines precision engineering with flexibility and advanced features to ensure consistent performance.
Technical Features:
- Linear machine with Allen Bradley (XYL-600) controls
- Flexible cutting length application (up to 300 mm)
- Speed variable modulation for optimized performance
- Continuous label supply with Plenty Reel System
Optional add-ons:
- Bottle dryer
- Double feeding screw
- Sleeve Supply Unit for Reel change-over without machine stoppage
- Tunnel temperature & steam pressure management
- CE with safety door & solenoid steam valve
- Ethernet for data collection
- Remote-controlled hub
| XYL-600 | |
 |
|
| Applications: | |
| Container Size | Diameter from 25 mm to 125 mm |
| Sleeve Dimensions |
· Lay Flat (LF): 60 mm to 210 mm · Cut Length (CL): 30 mm to 300 mm |
| Operating Speed |
· Full Body Sleeving: up to 28,000 BPH · Tamper Evident Sleeving: up to 36,000 BPH |
The XYL-600 system is an excellent choice for beverage, water, and functional drink packaging lines requiring maximum output, reliability, and nonstop operation.

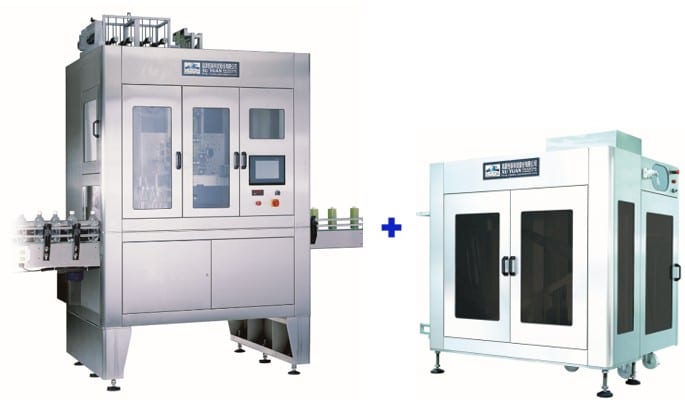

The XYL-800 Shrink Label Machine combined with the Plenty Reel System delivers ultra-high-speed, reliable labelling performance for large-scale production. With Siemens control and advanced modular features, it ensures both flexibility and maximum efficiency.
Technical Features:
- Linear machine with Siemens system
- Flexible cutting length application (up to 300 mm)
- Speed variable modulation
- Continuous label supply with Plenty Reel System
- Single applicator capacity up to 40,000 BPH
Optional add-ons:
- Bottle dryer
- Double feeding screw
- Reel change-over without machine stop
- Tunnel temperature & steam pressure management
- CE with safety door & solenoid steam valve
- Ethernet data collection
- Remote-controlled hub
| XYL-800 | |
 |
|
| Applications: | |
| Container Size | Diameter from 25 mm to 125 mm |
| Sleeve Dimensions |
· Lay Flat (LF): 60 mm to 210 mm · Cut Length (CL): 30 mm to 300 mm |
| Operating Speed |
· Full Body Sleeving: up to 30,000 BPH · Tamper Evident Sleeving: up to 42,000 BPH |
This system is the perfect choice for beverage and juice manufacturers looking for maximum throughput, reliability, and advanced automation.

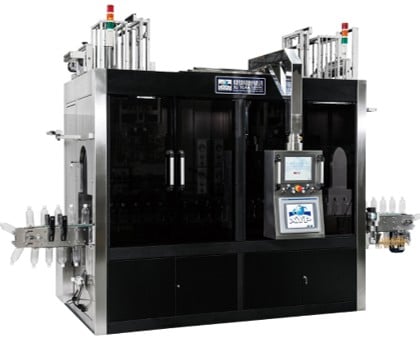

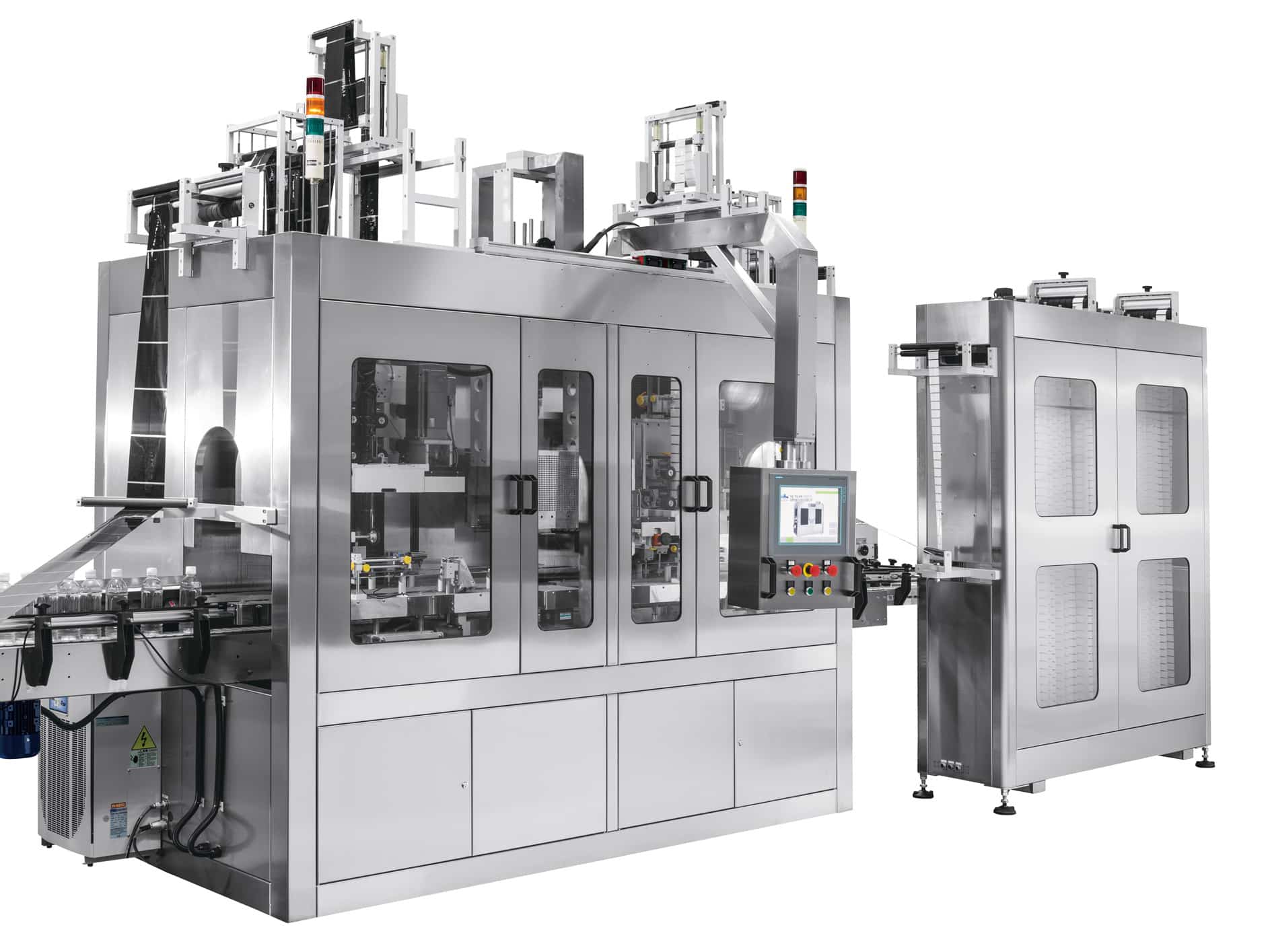

The XYLC Series Shrink Label Machines are high-performance dual-head systems designed for ultra-high-speed operations. They offer space-saving efficiency, advanced automation, and unmatched flexibility for large-scale production lines.
Technical Features:
- Linear machine design
- Dual-head system – one line with two inserting heads
- More space-saving compared to two single-head machines
- Flexible cutting length application
- Ergonomic cantilever HMI for operator ease
- Precise cutting at selected lengths through Servo-controlled cutting units and driver rollers
Optional add-ons:
- Bottle dryer
- Double feeding screw
- Reel change-over without machine stop
- Parameter storage for multiple bottle formats
- Rejector function (label junction and position shift detection)
- Tunnel temperature & steam pressure management
- CE with safety door & solenoid steam valve
- Ethernet data collection
- Remote-controlled hub
|
XYLC-600 |
XYLC-1000 |
|
 |
 |
|
| Applications: | ||
| Container Size | Diameter: min 25 mm, max 125 mm | |
| Sleeve Dimensions |
· Lay Flat (LF): 60 mm to 210 mm · Cut Length (CL): 30 mm to 300 mm |
|
| Operating Speed | Full Body & Tamper Evident up to 36,000 BPH | Full Body & Tamper Evident up to 48,000 BPH |
The XYLC Series is the ultimate solution for beverage, dairy, and FMCG packaging, delivering maximum throughput, reliability, and precision for high-demand production environments.

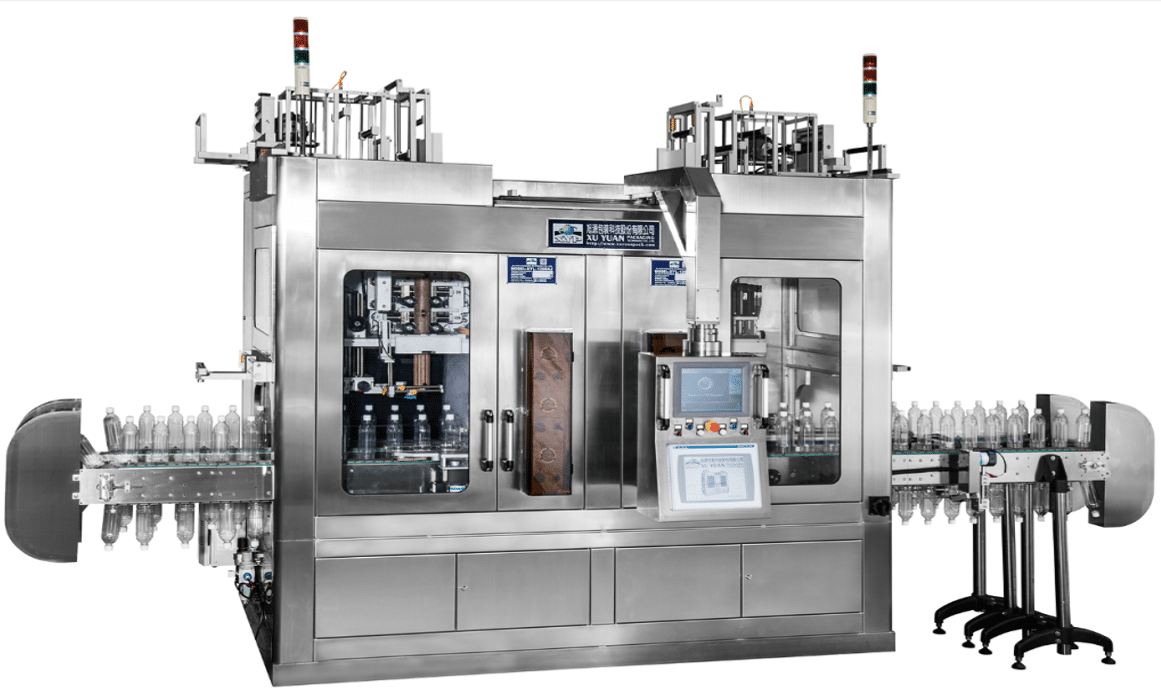

The XYL-1200 Shrink Label Machine with Plenty Reel System is engineered for ultra-high-speed labelling in demanding production lines. Designed with dual applicators, it provides continuous operation, precision, and flexibility for both full-body and tamper-evident applications.
Technical Features:
- Linear machine with PLC Siemens / Allen Bradley controls
- Flexible cutting length application (up to 300 mm)
- Speed variable modulation
- Continuous label supply when combined with Plenty Reel System
- Dual applicators delivering up to 70,000 BPH
- Ergonomic cantilever HMI for ease of operation
Optional add-ons:
-
- Bottle dryer
- Double feeding screw
- Reel change-over without stopping production
- Tunnel temperature & steam pressure management
- CE with safety door & solenoid steam valve
- Ethernet data collection
- Remote-controlled hub
- Smart bottle divider (for two conveyors into one)
|
XYL-1200 |
|
|
|
|
| Applications: | |
| Container Size | Diameter from 25 mm to 125 mm |
| Sleeve Dimensions |
· Lay Flat (LF): 60 mm to 210 mm · Cut Length (CL): 30 mm to 300 mm |
| Operating Speed |
· Two heads Full Body up to 55,000 BPH · Tamper Evident up to 70,000 BPH |
| Applicator Details |
· Body Label Only:
· Body + Tamper Evident:
|
The XYL-1200 system is the ultimate solution for mass-production beverage, water, and sports drink lines, where maximum speed and precision are critical.
